Product DescriptionCompany Info.<>
- Model:
- Q661F
- Structural form:
- Lever type
- Material:
- PVC
- Connection form:
- Card sleeve
- Nominal diameter:
- 50 mm
- Pressure environment:
- Normal pressure
- Operating temperature:
- Normal temperature
- Driving mode:
- Pneumatic
- Flow direction:
- One-way
- Standard:
- National standard
- Parts and accessories:
- Accessories
- Use:
- Cut off
- Types:
- Two-way type
- Action object:
- Pump

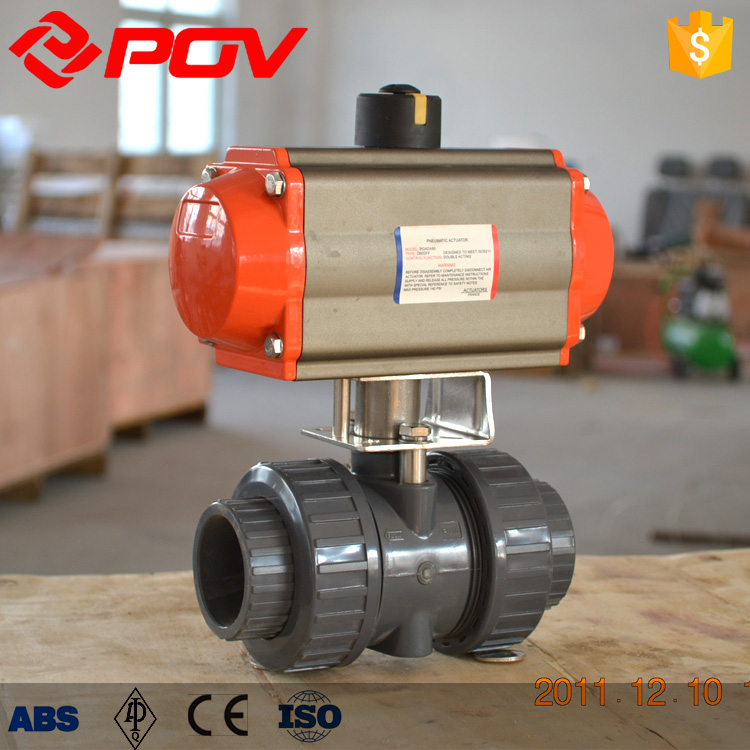

UPVC pneumatic double by ring ball valve Overview
PVC pneumatic ball valve according to different media selection of the corresponding material. Its structure is formed by connecting valve body and two ends, which can be glued and welded with pipeline for convenient disassembly and maintenance. Divided into straight-through and three-way, which can achieve three-way shunt, confluence, reversing, mixed flow effect.Standard technical parameters
valve body
Nominal diameter: DN15-DN100
Body material: UPVC, PPH, CPVC, PVDF, PP
Connection mode: double order, flange
Pressure grade: PN1.0MPa, PN1.6MPa
Structural form: straight through, tee
valve assembly
Seat seal: PTFE
Valve core material: UPVC, PPH, CPVC, PVDF, PP
Stem material: stainless steel 410, 304
Applicable medium: water, liquid, gas, oil, acid and alkali corrosive medium.
design and manufacture standards
Design and manufacture: API609 EN593
ISO5752 API609 EN558-1
Top flange: ISO5211
Pressure test: ISO5208 API598
pneumatic actuator
Double-acting: ventilation on, ventilation off, air source fault to maintain the current position
Single-acting gas open: ventilation open, dead close, gas source fault close
Single-acting air-off type: vent off, dead open, air source fault open
Optional accessories: reversing solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism, position keeping valve
Explosion-proof can be selected for electrical part
