Product DescriptionCompany Info.<>
- Model:
- PO9684
- Structural form:
- Floating ball tee
- Material:
- Stainless steel
- Connection form:
- Quick loading
- Nominal diameter:
- 65 mm
- Pressure environment:
- Normal pressure
- Operating temperature:
- Normal temperature
- Driving mode:
- Pneumatic
- Flow direction:
- Two-way
- Standard:
- National standard
- Parts and accessories:
- Accessories
- Use:
- Commutation
- Types:
- Three-way
- Action object:
- Pump

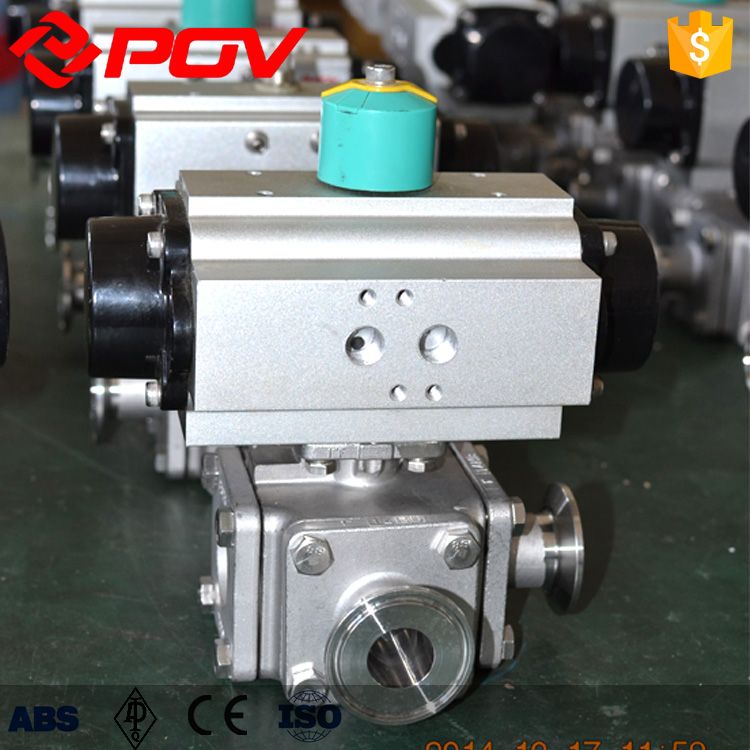

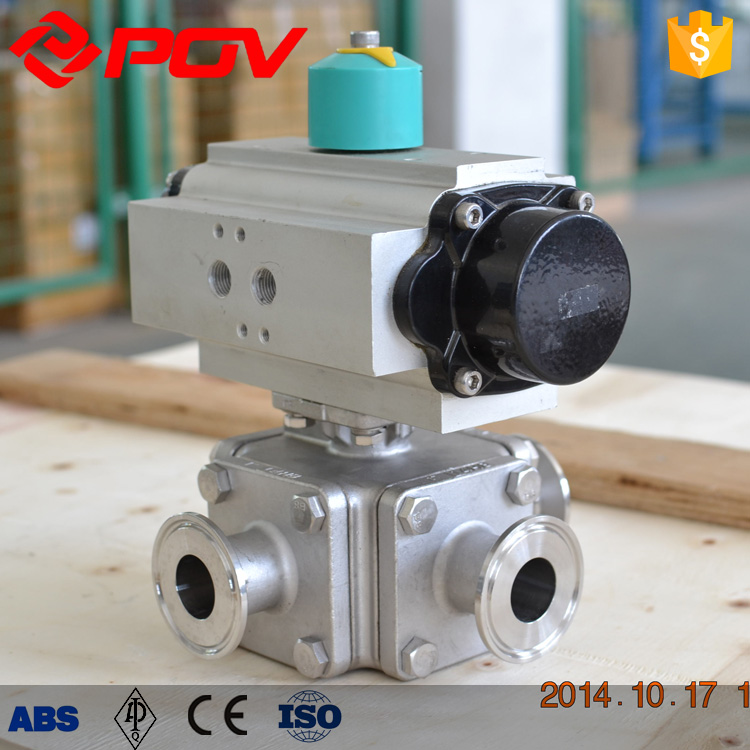

Fully coated pneumatic three-way ball valve no dead angle no residue Overview
Sanitary pneumatic three-way ball valve adopts 4-seat sealing design, which is conducive to keep the ball core stable. Valve stem explosion-proof design, valve stem with anti-static device. Double-layer disc spring is used for packing at valve stem, which is automatically centered. Three-way ball valve internal cavity with PTFE all-inclusive coveragevalve body
Nominal diameter: 1/2-2'
Body material: 304, 316, 316L
Connection mode: clamp type
Pressure rating: PN1.6MPa
Structure type: tee structure L type or T type
valve assembly
Seat seal: PTFE
Valve cavity: PTFE fully coated
Valve core material: 304, 316, 316L
Stem material: 304
Suitable medium: textile printing and dyeing industry automation control system, pigment dyeing
pneumatic actuator
Double-acting: ventilation on, ventilation off, air source fault to maintain the current position
Single-acting gas open: ventilation open, dead close, gas source fault close
Single-acting air-off type: vent off, dead open, air source fault open
Optional accessories: reversing solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism, position keeping valve
Explosion-proof can be selected for electrical part
