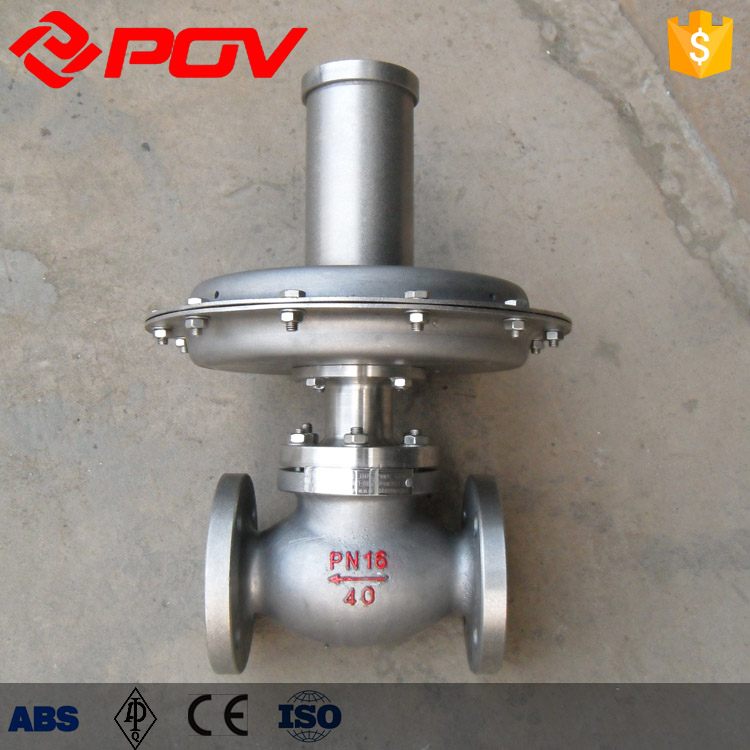

Overview of self-operated temperature regulating valve
Self-operated temperature control valve without external energy saving control valve used for non-corrosive gases and steam and other media of various heaters temperature control. Bellows + spring for pressure balance


Standard technical parameters


valve  body
Type  : Fluid pressure balance valve core
Nominal diameter: DN15-DN125
Nominal pressure: ANSI150, 300, 600LB
JIS10、16、20、30、40K
PN1.6、2.5、4.0、6.4MPa
Connection: Flanges: FF, RF, RJ and LG
Flange standard: ANSI B16.5, JIS B2201
JB/T79.1 PN1.6MPa,JB/T79.2
Thread: DIN, NPT, RC, BSP, G, etc.
Welding: GB12224 -89
Sealing surface form: PN16 convex
Material  : WCB, WCC, WC6, 304, 316, 304L, 316L
Gland type: pressure plate type
Filler  : V-fluorotetrafluoroethylene, flexible graphite


valve assembly
Valve core type: balanced valve core
Valve core material: 304, 316
Valve seat material: 304, 316, PTFE


valve  cover
Built-in pressure balance mechanism, 316 bellows +304 balance spring composition, through
Connecting nuts disassemble the adjusting mechanism and actuator.


actuator
Thermostat is the actuator of temperature regulating valve, which works according to the incompressible and thermal expansion and contraction pressure of liquid.
There are two models of temperature controller, a variety of temperature control range can be selected
special type
For clean working environment, no lubrication




DN	kVvalue	dispose Mm	PN16 * Large differential pressure	PN25 * Large pressure differenceMPa	allowable leakage		mode of action
					rigidity seal	soft seal
15	4	6	1.6	2.0	410-4×Valve rating	10bubbles/min	heating type Cooling Type
20	6.3	6	1.6	2.0
25	8	6	1.6	2.0
32	16	8	1.6	2.0
40	20	10	1.6	2.0
50	32	12	1.6	2.0
65	50	12	1.6	2.0		20bubbles/min
80	80	18	1.6	2.0
100	125	20	1.6	2.0
125	160	20	1.6	2.0



type	timeS	temperature setting range	environment temperature	nominal pressure	temperature sensor	sensor medium	Sensor Material	intrusive casing material	solution hood sensor Connection size	capillary length	control accuracy
D06	120	35-110℃	0~70℃	2.5MPa	smooth sensor 24380	silicone oil	brass	brass nickel plating stainless steel	1-1/4’	3(Standard) 5 10 15	±1.5℃
D17	20				spiral sensor 30500		copper nickel plating	noninvasive casing
